NTE1410

Features: · The NTE1410 provides a total video and chrominance signal processing circuitry, allowing compact set design· Incorporating luminance signal mixing circuit and provides R.G.B. original color output· All DC control system for simplicity of wiring (color, tint, contrast, picture, luminanc...

product image

NTE1410 Picture
See larger image
SeekIC No. : 004436020 Detail

NTE1410: Features: · The NTE1410 provides a total video and chrominance signal processing circuitry, allowing compact set design· Incorporating luminance signal mixing circuit and provides R.G.B. original co...

NTE1410 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1410
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· The NTE1410 provides a total video and chrominance signal processing circuitry, allowing compact set design
· Incorporating luminance signal mixing circuit and provides R.G.B. original color output
· All DC control system for simplicity of wiring (color, tint, contrast, picture, luminance)


Pinout

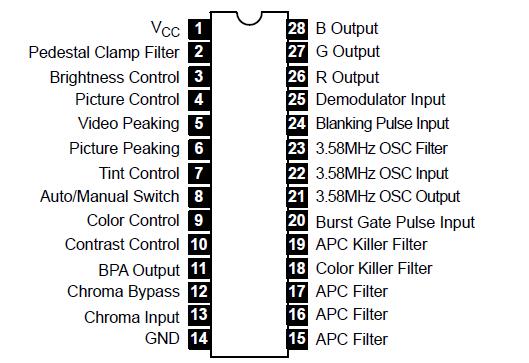

Connection Diagram


Specifications

Supply Voltage, VCC  .......................... 14.4V
Circuit Voltage
V114  ..............................0V to 14.4V
V3,4,7,8,9,1014 ........................0V to V114
V2014................................ V114
V2414 ............................6V to V114
Circuit Current, I26, I27, I28  .....................40mA
Power Dissipation (TA = +70°C), PD .................750mW
Operating Ambient Temperature Range, Topr ........20° to +70°C
Storage Temperature Range, Tstg............. 40° to +125°C

Note 1. + and - are flowin and flowout currents to/from the circuit, respectively.


Description

The NTE1410 is an integrated circuit in a 28Lead DIP type package designed for all color TV video and chrominance signal process circuits.
