NTE1404

Features: · Provides Total TV Sound Signal Processing Circuitry from IF Amplifier through AF Output· DC Volume Control System: Control Voltage 0V to VCC· Fixed Detection Output Terminal for TV Sound Multiplex ApplicationPinoutSpecificationsSupply Voltage, VCC1 . . . . . . . . . . . . . . . . . . ....

product image

NTE1404 Picture
See larger image
SeekIC No. : 004436016 Detail

NTE1404: Features: · Provides Total TV Sound Signal Processing Circuitry from IF Amplifier through AF Output· DC Volume Control System: Control Voltage 0V to VCC· Fixed Detection Output Terminal for TV Sound...

NTE1404 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1404
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Provides Total TV Sound Signal Processing Circuitry from IF Amplifier through AF Output
· DC Volume Control System: Control Voltage 0V to VCC
· Fixed Detection Output Terminal for TV Sound Multiplex Application


Pinout

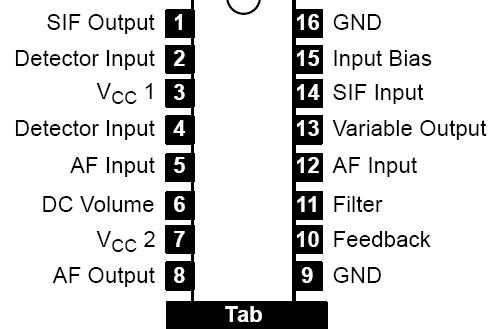

Connection Diagram


Specifications

Supply Voltage, VCC1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V316 to 13.8V
Supply Voltage, VCC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V716 to 26V
Circuit Voltage, V616 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  6V to V316
Circuit Current (Peak), I8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 to +1.2A
Power Dissipation, PD
Detector, DCVR Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6W
Output Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  1.6W
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55° to +150°C
Note 1. + and are flowin and flowout current to/from the circuit respectively.


Description

The NTE1404 is an integrated circuit in a 16Lead DIP w/Fin type package designed for use as a TV sound signal processing circuit
