NTE1402

Features: ` Simplifies Selection Circuit up to 16 Channels` Incorporating Clock Oscillator, Input Control, UPDOWN Counter and Decoder Circuit` Remote Control Electronic Channel Selection Available (UPDOWN Bidirectional)` Clock Oscillation Frequency Variable by External Components : 0.7 to 2.5KHZ` ...

product image

NTE1402 Picture
See larger image
SeekIC No. : 004436015 Detail

NTE1402: Features: ` Simplifies Selection Circuit up to 16 Channels` Incorporating Clock Oscillator, Input Control, UPDOWN Counter and Decoder Circuit` Remote Control Electronic Channel Selection Available (...

NTE1402 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1402
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Simplifies Selection Circuit up to 16 Channels
` Incorporating Clock Oscillator, Input Control, UPDOWN Counter and Decoder Circuit
` Remote Control Electronic Channel Selection Available (UPDOWN Bidirectional)
` Clock Oscillation Frequency Variable by External Components : 0.7 to 2.5KHZ
` AFC Defeat Pulse Output Terminal
` Initial Channel at the Time of Power ON can be Set at Any Channel by the Adjustment of
  External Components
` Jump Over Channel Selection Available
` Selection Output Terminal Voltage: 40V


Pinout

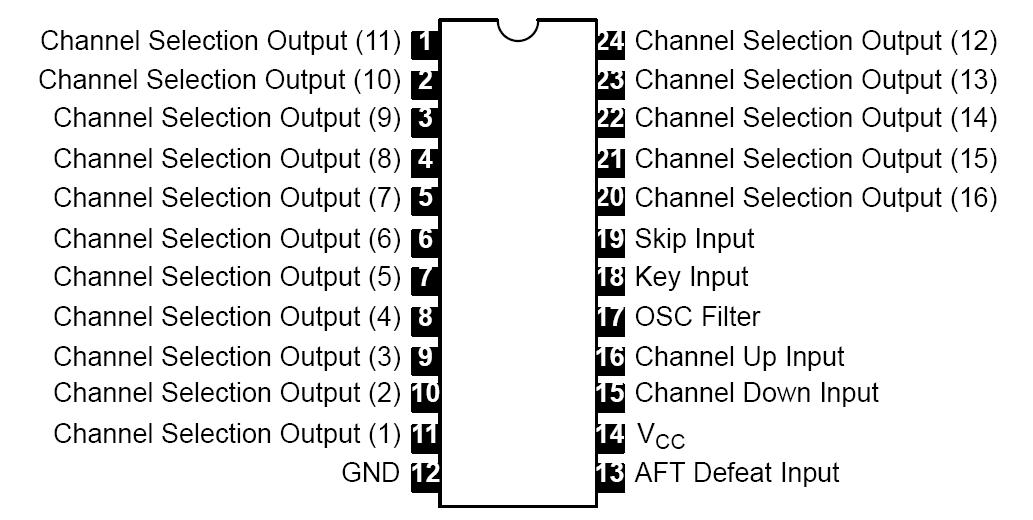

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.2V
Circuit Voltage
VK12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 to 50V
V1312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 to 14.4V
V1412, V1712 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 to 8V
Circuit Current
IK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 to 30mA
I13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 to 25mA
I14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 to 100mA
I15, I16, I17, I18, I19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 to 10mA
Power Dissipation (TA = +75°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .600mW
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40° to +150°C


Description

The NTE1402 is an integrated circuit in a 24Lead DIP type package designed for electronic tuner by the preset volume method.
