Product Details

Description



Pinout

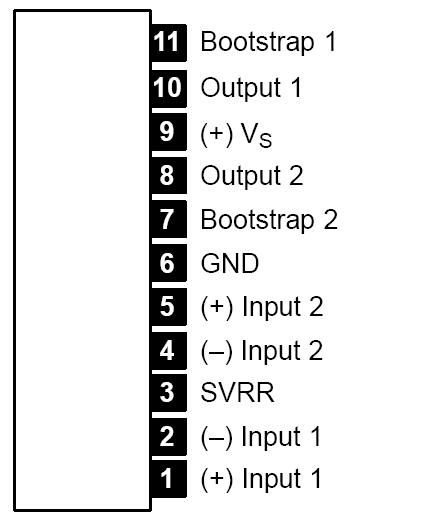

Connection Diagram


Specifications

Operating Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
DC Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28V
Peak Supply Voltage (for 50ms), VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Output Peak Current (Note 1), IO
NonRepetitive (t = 0.1ms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
Repetitive (f > 10Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5A
Power Dissipation (TC = +60°C), Ptot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   30W
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +150°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +150°C
Maximum Thermal Resistance, JunctiontoCase, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3°C/W


Description

The NTE1396 is a Class B dual audio power amplifier specifically designed for car radio applications. Power booster amplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads obtaining an output power of more than 20W.

The NTE1396 has high reliability and guarantees complete safety during operation due to protection against:
· Output DC and AC Short Circuit to GND or Across the Head
· Overrating Chip Temperature (+150°C)
· Polarity Inversion
· Load Dump Voltage Surge
· Fortuitous Open GND
· Very Inductive Loads
