NTE1394

Features: ` Dual Mode or Bridge Connection Mode Type.` Some Protection Circuits Included` Thermal Protection, Over Voltage Protection, Current Limitter, BTL DC Short Protection.` Wide Operating Voltage Range: VCC(opr) = 8V to 18V` A chassis mounting is easily designed using SIP (Single in Line Pac...

product image

NTE1394 Picture
See larger image
SeekIC No. : 004436008 Detail

NTE1394: Features: ` Dual Mode or Bridge Connection Mode Type.` Some Protection Circuits Included` Thermal Protection, Over Voltage Protection, Current Limitter, BTL DC Short Protection.` Wide Operating Volt...

NTE1394 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1394
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Dual Mode or Bridge Connection Mode Type.
` Some Protection Circuits Included
` Thermal Protection, Over Voltage Protection, Current Limitter, BTL DC Short Protection.
` Wide Operating Voltage Range: VCC(opr) = 8V to 18V
` A chassis mounting is easily designed using SIP (Single in Line Package) 12 Pins
` This Power IC Obtains High Output Power by Bridge Connection: POUT = 17W (Typ)
  at VCC = 13.2V, RL = 4, THD = 10%
` Dual Mode: Minimum Load Impedance is 2 ohm
  BTL Mode: Minimum Load Impedance is 4 ohm


Pinout

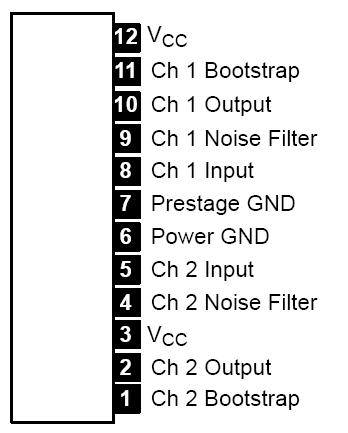

Connection Diagram


Specifications

Peak Supply Voltage, VCC surge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45V
DC Supply Voltage (30 sec), VCCDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Operating Supply Voltage, VCCopr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
Output Current (Peak), IO(peak) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25W
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55° to +150°C
