Features:

` Available in Two Different Pin Configurations:
  Normal NTE1392
  Reverse NTE1393
` High Output Power: 7W Typ (VCC = 22V, RL = 8, THD = 10%)
` Wide Range of Supply Voltage: 5V to 30V
` Very Low Harmonic and Crossover Distortion
` Thermal ShutDown Circuit Provided


Pinout

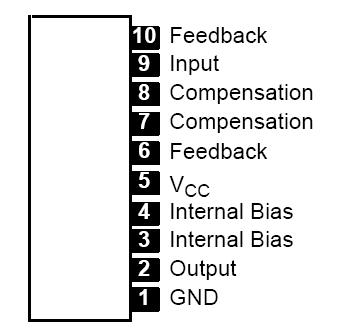

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30V
Output Current, IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.75A
Power Dissipation (TC = +78°C), PT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.2W
Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+150°C
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55° to +125°C
Thermal Resistance, JunctiontoCase, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10°C/W


Description

The NTE1392 and NTE1393 are class B power amplifiers in a 10Lead SIP type package designed especially for home tpe stereo amplifiers. These devices provide an output power of 5W at 19V, and also 7W at 22V to an 8 load with 10% distortion.
