NTE1388

Features: ` High Gain (52dB. Typ) and High Output (5.8W Typ)` Soft Clip` Few External Components` BuiltIn Thermal Cutoff Circuit Protects Against Load Short, Overload` BuiltIn Pop Noise Prevention Circuit Protects Against Power Supply ON Noise` May Be Used for Bridge Amplifier Applications (PO = 1...

product image

NTE1388 Picture
See larger image
SeekIC No. : 004436003 Detail

NTE1388: Features: ` High Gain (52dB. Typ) and High Output (5.8W Typ)` Soft Clip` Few External Components` BuiltIn Thermal Cutoff Circuit Protects Against Load Short, Overload` BuiltIn Pop Noise Prevention C...

NTE1388 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1388
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High Gain (52dB. Typ) and High Output (5.8W Typ)
` Soft Clip
` Few External Components
` BuiltIn Thermal Cutoff Circuit Protects Against Load Short, Overload
` BuiltIn Pop Noise Prevention Circuit Protects Against Power Supply ON Noise
` May Be Used for Bridge Amplifier Applications (PO = 18W, RL = 4Ω)

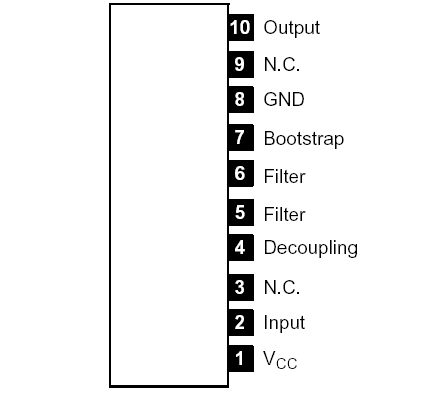

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage, VCCmax.............................................................................. 18V
Maximum Output Current (Pin1: Sink, Pin8: Source, Pin10: Sink, Note 1), IO............. 4.5A.
Surge Supply Voltage (t 0.2sec), Vsurge................................................................... 40V
Allowable Power Dissipation, PDmax............................................................................. 7W
Operating Temperature Range, Topr ..........................................................20° to +75
Storage Temperature Range, Tstg ............................................................40° to +150

Note 1. 100 x 100 x 1.5mm3 Al heat sink used.
