Product Details

Description



Features:

` Output Power: POUT = 2.4W/Ch (Typ) at VCC = 14V, RL = 8, THD = 10%
` Wide Operating Supply Voltage Range: VCC = 5.5V to 20V
` Very Few External Components Required
` BuiltIn TurnOn "POP" Noise Muting Circuit
` Excellent Crosstalk: CT = 60dB (Typ)

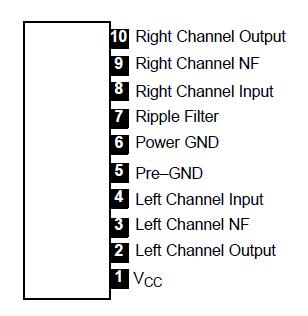

Pinout

Connection Diagram


Specifications

Operating Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Output Current (Peak), IO(peak) . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 1.5A
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 12.5W
Operating Temperature Range, Topr . . . . . . . . . . . . . .  . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . .. . . 55° to +150°C
