Features:

· High Output Power, Dual or BTL Circuit Operation
· Wide Output Power Setting Range
· Wide Supply Voltage Range
· Incorporates an Automatic Operating Point Stabilizer Circuit
· Low Distortion, Low 1/f Noise, and Low Shock Noise
· High Audio Channel Separation
· Incorporates a Phase Converter


Pinout

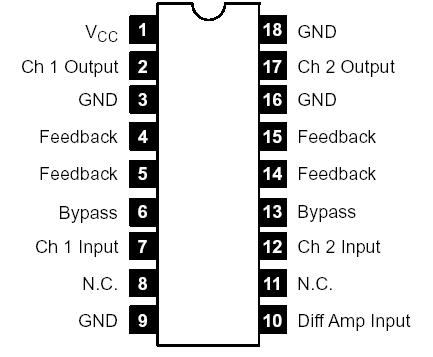

Connection Diagram


Specifications

Supply Voltage (Note 1), VCC  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .20V
Supply Current, ICC  . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . .4A
Power Dissipation (TA = +60°C), PD  . . . . . . . . . . . . . . . .. . . . . . . . .14W
Oprating Ambient Temperature Range, Topr  . . . . . . . . .30° to +75°C
Storage Temperature Range, Tstg  . . . . . . . .. . . . . . . .55° to +150°C
Note 1. VCC at operation mode = 20V (Stabilized power source).


Description

The NTE1383 is an integrated circuit in an 18Lead DIP designed for use as an audio output with low noise, low distortion, and high output for a wide range of power supply voltages and load resistance. Two builtin amplifiers provide dual or BTL operation. Typical applications of NTE1383 include radio cassette recorder, tape recorder, car stereo, and home entertainment.
