NTE1377

Features: ` BuiltIn 2 Channels (Dual) Enabling use in Stereo and Bridge Amplifier Applications Dual: 6W x 2 Typ Bridge: 19W Typ` Minimum Number of External Parts Required` Low Pop Noise during Power Supply ON/OFF and Good Starting Balance` Good Ripple Rejection: 46dB Typ` Good Channel Separation` ...

product image

NTE1377 Picture
See larger image
SeekIC No. : 004435998 Detail

NTE1377: Features: ` BuiltIn 2 Channels (Dual) Enabling use in Stereo and Bridge Amplifier Applications Dual: 6W x 2 Typ Bridge: 19W Typ` Minimum Number of External Parts Required` Low Pop Noise during Power...

NTE1377 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1377
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` BuiltIn 2 Channels (Dual) Enabling use in Stereo and Bridge Amplifier Applications
              Dual: 6W x 2 Typ
              Bridge: 19W Typ
` Minimum Number of External Parts Required
` Low Pop Noise during Power Supply ON/OFF and Good Starting Balance
` Good Ripple Rejection: 46dB Typ
` Good Channel Separation
` Low Residual Noise (Rg = 0)
` Low Distortion over a Wide Range of Low to High Frequencies
`BuiltIn Audio Muting Function
` BuiltIn Protectors:
            a. Thermal Protection
            b. Overvoltage, Surge Voltage Protection
            c. PintoPin Short Protection

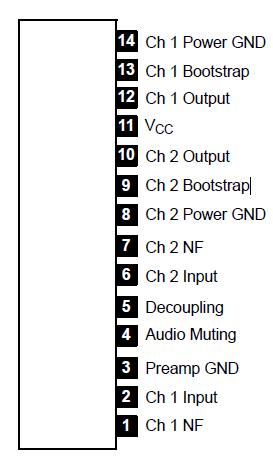

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage, VCCmax
Quiescent (t = 30sec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Surge Supply Voltage (t 0.2sec), VCCsurge . . . . . . . . . . . .. . . . . . . . . . . . . 50V
Allowable Power Dissipation (TC = +75°C), Pdmax . . . . . . . . . . . . . . .. . . . . 15W
Thermal Resistance, Junction to Case, RJC . . . . . . . . . . . . . . . . . . . . .  . . 3°C/W
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . 40° to +150°C
