NTE1376

PinoutSpecificationsSupply Voltage, VS.......................................................................................................... ±20V Input Voltage, VI ...................................................................................................................VSDifferential ...

product image

NTE1376 Picture
See larger image
SeekIC No. : 004435997 Detail

NTE1376: PinoutSpecificationsSupply Voltage, VS.......................................................................................................... ±20V Input Voltage, VI .................................

NTE1376 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1376
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

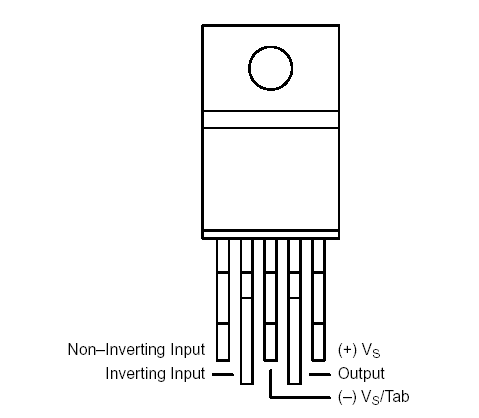

Connection Diagram


Specifications

Supply Voltage, VS.......................................................................................................... ±20V
Input Voltage, VI ...................................................................................................................VS
Differential Input Voltage, VI............................................................................................ ±15V
Output Peak Current (Internally Limited), IO......................................................................... 4A
Power Dissipation (TC = +75), Ptot ..................................................................................25W
Operating Junction Temperature Range, TJ..................................................... 40° to +150
Storage Temperature Range, Tstg................................................................... 40° to +150
Thermal Resistance, JunctiontoCase, RthJC................................................................. 3/W
Typical Thermal ShutDown Junction Temperature (VS = ±16V, TA = +25), Tsd ..........+145


Description

The NTE1376 is a monolithic integrated circuit in a 5Lead TO220 type package intended for use as an audio class AB amplifier. Typically, it provides 22W output power (THD = 0.5%) at VS = 32V/4Ω. This NTE1376 provides high output current and has very low harmonic and crossover distortion. Further, the NTE1376 incorporates a short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A thermal shutdown system is also included.
