NTE1370

Features: ` Output Power: POUT = 5.8W (Typ) at VCC = 13.2V, RL = 4, THD = 10% POUT = 9.2W (Typ) at VCC = 13.2V, RL = 2, THD = 10%` Maximum Output Power: POM = 9.5W (Typ) at VCC = 13.2V, RL = 4` Low Distortion: THD = 0.15% at POUT = 1W, GV = 55dB THD = 0.07% at POUT = 1W, GV = 44dB` Wide Operating ...

product image

NTE1370 Picture
See larger image
SeekIC No. : 004435995 Detail

NTE1370: Features: ` Output Power: POUT = 5.8W (Typ) at VCC = 13.2V, RL = 4, THD = 10% POUT = 9.2W (Typ) at VCC = 13.2V, RL = 2, THD = 10%` Maximum Output Power: POM = 9.5W (Typ) at VCC = 13.2V, RL = 4` Low ...

NTE1370 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1370
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Output Power: POUT = 5.8W (Typ) at VCC = 13.2V, RL = 4, THD = 10% POUT = 9.2W (Typ) at VCC = 13.2V, RL = 2, THD = 10%
` Maximum Output Power: POM = 9.5W (Typ) at VCC = 13.2V, RL = 4
` Low Distortion: THD = 0.15% at POUT = 1W, GV = 55dB THD = 0.07% at POUT = 1W, GV = 44dB
` Wide Operating Supply Voltage Range: VCC = 9 to 18V
` Minimum Working Voltage: 9V
` Excessive Supply Voltage Protection Circuit
` Current Limiting for Short Circuit Protection
` Thermal ShutDown Circuit


Pinout

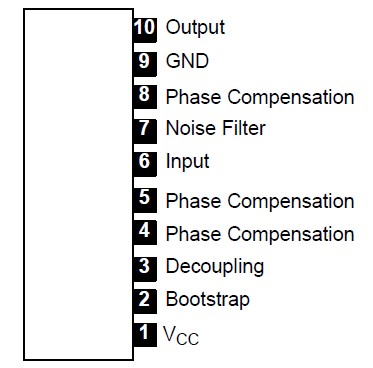

Connection Diagram


Specifications

Operating Supply Voltage, VCC . . . . . . . . . .  . . . . . . . . . . . . . . . .  . . 18V
Quiescent Supply Voltage, VCCQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Output Current (Peak), IO(peak) . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.5A
Power Dissipation, PD . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . 7.5W
Operating Temperature Range, Topr . . . . .  . . . . . . . . . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . .  55° to +150°C
