NTE1368

Features: ` High Power Output` Low Noise Output Voltage` Low Total Harmonic Distortion` Minimum External Components` OnChip Power On Pop Noise Protection Circuit` Audio Mute Function is provided` Separated GND Pins for Input/Output Circuit` Various Protection Circuits: Overvoltage Protection Therm...

product image

NTE1368 Picture
See larger image
SeekIC No. : 004435994 Detail

NTE1368: Features: ` High Power Output` Low Noise Output Voltage` Low Total Harmonic Distortion` Minimum External Components` OnChip Power On Pop Noise Protection Circuit` Audio Mute Function is provided` Se...

NTE1368 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1368
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High Power Output
` Low Noise Output Voltage
` Low Total Harmonic Distortion
` Minimum External Components
` OnChip Power On Pop Noise Protection Circuit
` Audio Mute Function is provided
` Separated GND Pins for Input/Output Circuit
` Various Protection Circuits:
  Overvoltage Protection
  Thermal Protection
  Load Short Protection
  Output PintoDC Short Protection


Pinout

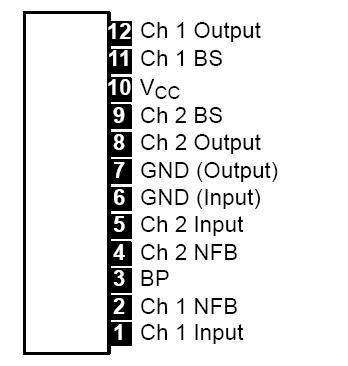

Connection Diagram


Specifications

Power Supply Voltage, VCC
No Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Operational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Surge (ts 0.2 sec, tr 1msec) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Output Current (Peak), IOPEAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5A
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18W
Operating Case Temperature Range, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +150°C
Note 1. Permanent device damage may occur if "ABSOLUTE MAXIMUM RATINGS" are exceeded.
Functional operation should be restricted to the conditions as detailed in the operational sections
of this data sheet. Exposure to absolute maximum rating condition for extended periods may
affect device reliability.


Description

The NTE1368 is an integrated circuit in a 12Lead SIP type package designed for dual, lowfrequency, high power amplifier applications. This device requires few external components, thus enabling high density mounting. Design for heat radiation is easy due to low thermal resistance. The NTE1368 contains internal poweron pop noise protection circuitry and various other protection circuits. This device is best suited for car stereo applications.
