NTE1367

Features: · High Output Power, Dual or BTL Operation · Wide Output Power Settuing Range · Wide Supply Voltage Range · Incorprated Automatic Operating Point Stabilizer Circuit · Low Distortion, Low 1/f Noise, and Low Shock Noise · High Audio Channel Separation · Incorporated Phase Conve...

product image

NTE1367 Picture
See larger image
SeekIC No. : 004435993 Detail

NTE1367: Features: · High Output Power, Dual or BTL Operation · Wide Output Power Settuing Range · Wide Supply Voltage Range · Incorprated Automatic Operating Point Stabilizer Circuit · Low Distortio...

NTE1367 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1367
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High Output Power, Dual or BTL Operation · Wide Output Power Settuing Range · Wide Supply Voltage Range · Incorprated Automatic Operating Point Stabilizer Circuit · Low Distortion, Low 1/f Noise, and Low Shock Noise · High Audio Channel Separation · Incorporated Phase Converter

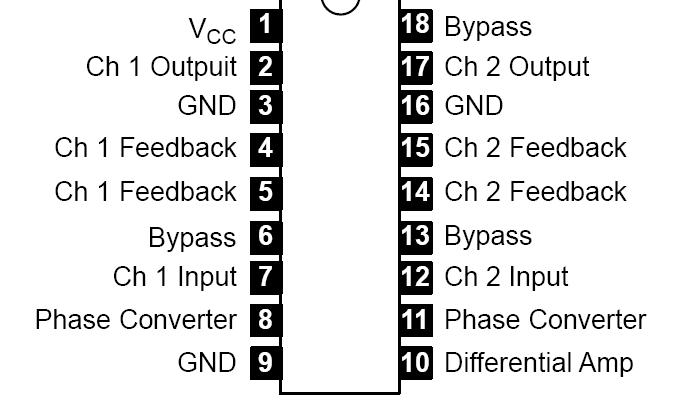

Pinout

Connection Diagram


Specifications

Supply Voltage, (Note 1), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Power Dissipation (TA = +60°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Operating Ambient temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55° to +150°C
Note 1. VCC at operation mode = 20V (stabilized power source).


Description

The NTE1367 is an integrated circuit in an 18Lead DIP type package designed for use in audio output applications with low noise, low distortion and high output widely ranging for power supply and load resistance. Two amps are built in allowing for dual or BTL operation.
