Product Details

Description



Features:

` High Gain, Low Distortion, Low Noise
` Few External Components
` BuiltIn Thermal Protection Circuit
` BuiltIn Overvoltage Protection Circuit
` Low Shock Noise When Power is Switched ON/OFF

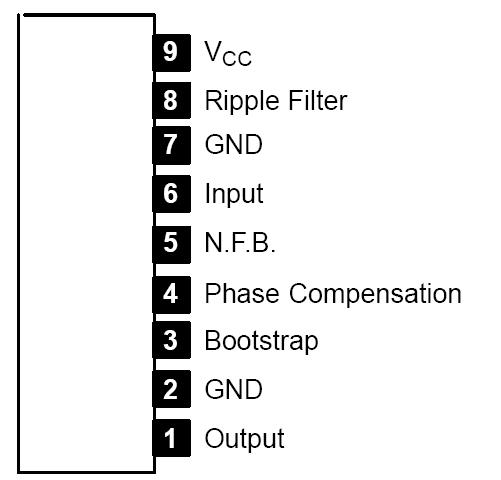

Pinout

Connection Diagram


Specifications

Supply Voltage (V92), VCC
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
No Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Power Dissipation (TA = +30°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10W
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +150°C


Description

The NTE1365 is an integrated circuit in a 9Lead SIP type package designed for low power amplifier applications such as portable radios, radio cassette tape recorders, and car radios.
