Product Details

Description



Features:

· Muting Circuit
· Reduced Heat Sink due to Case Temperature Dissipation up to +125°C

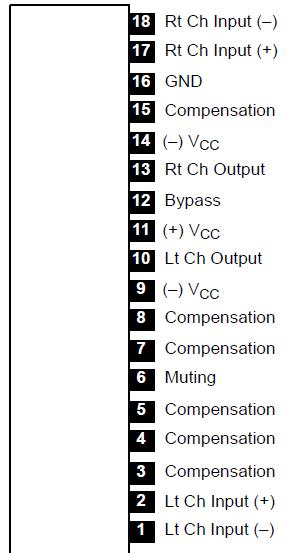

Pinout

Connection Diagram


Specifications

Supply Voltage, VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±53.0V
Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . +150°C
Substrate Temperature, TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30° to +125°C
Thermal Resistance, JunctiontoCase, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8°C/W
Turnon Time (VCC = ±35V, RL = 8, f = 50Hz, PO = 50W), ts . . . . . . . . . . . . . . . . . . . . . . . . . . . 2sec
