Product Details

Description



Pinout

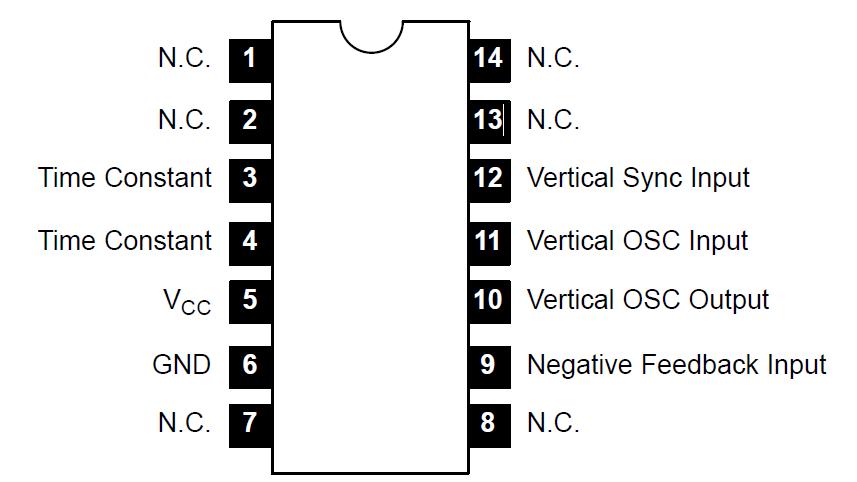

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V
Vertical Sync Input Voltage, V(Sync) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Vpp
Operating Temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50°C to +125°C
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . 0.58W


Description

The NTE1312 is a silicon monolithic integrated circuit in a 14Lead DIP type package designed for use in TV vertical oscillator, sync circuits. It includes a vertical oscillator, vertical trigger and comparator amplifier.
