Product Details

Description



Features:

`Structure: Silicon Monolithic Integrated Circuit
`Applications: AMIF, FMIF, AMAGC

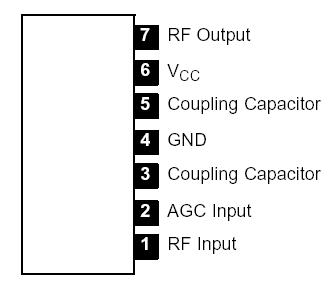

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Operating Temperature Range, Topt  . . . . . .. . . . . .15° to +60°C
Storage Temperature Range, Tstg  . . . . . . .. . . . . .50° to +125°C


Description

The NTE1301 is a silicon monolithic integrated circuit in a 7Lead SIP type package designed for the AM/FM IF amplifier of a radio receiver. Two differential amplifiers and an AGC circuit perform good limiting quality for FM operation and good AGC characteristics for AM operation.
