Product Details

Description



Features:

· Wave Shaping Circuit
· Sawtooth Wave Generator
· Comparator
· DC Amplifier
· Regulator


Pinout

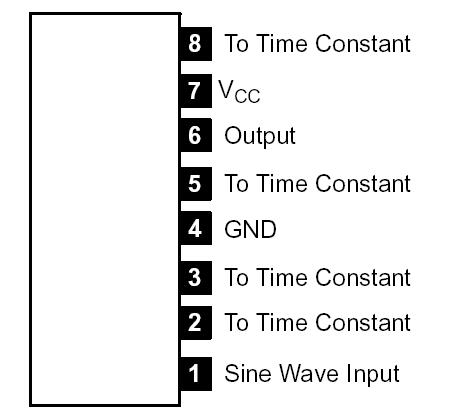

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .17V
Input Voltage, Vi . . . . . . . . . . . . . . . . . . . . . . . . . . .+4.5V to 2.0V
Power Dissipation, PD  . . . . . . . . . . . . . . . . . . . . .  . . . . . . .600mW
Operating Temperature Range, Topr . . . . . . . . .  .10° to +60°C
Storage Temperature Range, Tstg  . . . . .  . . . . .50° to +125°C


Description

The NTE1300 is a silicon monolithic integrated circuit in an 8Lead SIP type package designed for use as a Frequency Servo Control System for tape recorders and VCRs.
