Product Details

Description



Features:

` BuiltIn Vertical Deflection Driver Circuit
` Incorporating Vertical and Horizontal Oscillator Circuit, Operations Highly Stable Against Changes in Supply Voltage and Temperature.
` Highly Stable Synchronous Separation Circuit Against Noise
` BuiltIn High Tension Protector Circuit (XRay Protection)
` 12V Supply Voltage Operation.

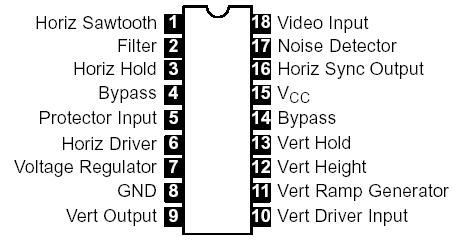

Pinout

Connection Diagram


Specifications

Supply Voltage
V78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.5V
V158 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14.4V
Circuit Voltage
V18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 10V
V108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to V158
V128 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to V158
V178 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6 to 6.0V
V188 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 to +2V
Supply Current
I7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15mA
I15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Circuit Current
I2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 to +3mA
I3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..5 to 0mA
I4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 to +5mA
I5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .1 to +1mA
I6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 to 0mA
I9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..15 to 0mA
I12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to +150mA
I13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 40mA
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..450mW
Operating Ambient Temperature Range, Topr . . . .20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . 55° to +150°C
Note 1. -and+are flowin and flowout currents to/from the circuit, respectively.


Description

The NTE1295 is an integrated circuit in an 18Lead DIP type package designed for color TV deflection signal processing circuit. It can be operated with 12V power supply and is suitable for compact and mediumsized color TV sets.
