Features:

` Minimum Working Supplu Voltage: Vs = 3V Min
` Low Quiescent Current
` Low Number of External Components
` Good Ripple Rejection
` No Crossover Distortion
` Low Power Dissipation
` Output Power:
    Po = 2W at 12V/8Ω
    Po = 1.6W at 9V/4Ω
    Po = 1.2W at 9V/8Ω


Pinout

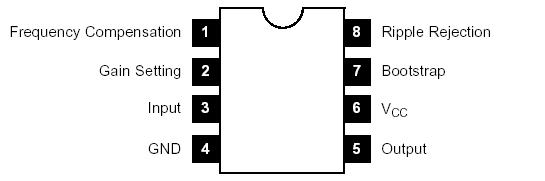

Connection Diagram


Specifications

Supply Voltage, Vs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16V
Output Peak Current, Io  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .1.5A
Power Dissipation (TA = +50°C), Ptot  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1W
Junction Temperature Range, TJ  . . . . . . . . . . . . . . . . . . . .. .40° to +150°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . .  ..40° to +150°C
Maximum Thermal Resistance, JunctiontoAmbient, RthJA  . . . .. . .100°C/W


Description

The NTE1294 is a monolithic integrated audio amplifier in an 8Lead DIP type package designed for use as a low frequency class B power amplifier with a wide supply voltage range (3V to 16V) in portable radios, cassette recorders, and players etc.
