NTE1293

Features: ` Very Low Number of External Components Required` Easy Mounting with No Electrical Isolation Between the Package and Heat Sink` Very Low Transient Noise at Power SwitchOn` No Damage for Reverse Insertion on the PC Board` Thermal ShutDown Circuit Included` Load Dump Protection Circuit In...

product image

NTE1293 Picture
See larger image
SeekIC No. : 004435967 Detail

NTE1293: Features: ` Very Low Number of External Components Required` Easy Mounting with No Electrical Isolation Between the Package and Heat Sink` Very Low Transient Noise at Power SwitchOn` No Damage for R...

NTE1293 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1293
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Very Low Number of External Components Required
` Easy Mounting with No Electrical Isolation Between the Package and Heat Sink
` Very Low Transient Noise at Power SwitchOn
` No Damage for Reverse Insertion on the PC Board
` Thermal ShutDown Circuit Included
` Load Dump Protection Circuit Included


Pinout

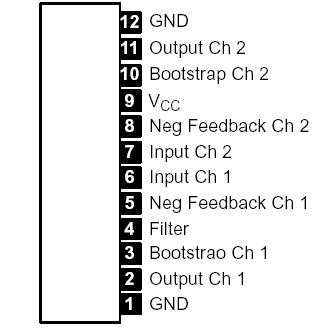

Connection Diagram


Specifications

Supply Voltage (Surge PW = 200ms), VCCsurge . . . . . . . . . . . . . . .40V
Supply Voltage (Quiescent, Note 1), VCC1  . . .. . . . . . . . . . . . . . . .25V
Supply Voltage (Operational), VCC2  . . . . . . . . . . . . .. . . . . . . . . . .18V
Peak Circuit Current, ICCpeak. . . . . . . . . . . . . . .. . . . . . . . . . . . . . 4.5A
package Dissipation, PD . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . .20W
Operating Temperature Range (Note 1), Topr  . . . . . .30° to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . .55° to +150°C
Note 1. Using an aluminum heat sink, RthCA = 6°C/W.


Description

The NTE1293 is a dual audio power amplifier in a 12Lead SIP type package specifically designed for car stereo applications. This device provides an output power of 7W/Ch to a 4Ω load with 10% THD at 14.4V power supply.
