NTE1292

Features: · Electronic Attenuator: Replaces Conventional AC Volume Control· Volume Reduction Range: 85dB Typ· Sensitivity: 3dB Limiting Voltage 30µV Typ· Excellent AM Rejection 68dB Typ at 10mV· Audio Output Voltage: 1V Typ· Wide Supply Voltage Range: VCC = 6V to 18V· Internal Zener Diode Re...

product image

NTE1292 Picture
See larger image
SeekIC No. : 004435966 Detail

NTE1292: Features: · Electronic Attenuator: Replaces Conventional AC Volume Control· Volume Reduction Range: 85dB Typ· Sensitivity: 3dB Limiting Voltage 30µV Typ· Excellent AM Rejection 68dB Typ at 10m...

NTE1292 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1292
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Electronic Attenuator: Replaces Conventional AC Volume Control
· Volume Reduction Range: 85dB Typ
· Sensitivity: 3dB Limiting Voltage 30µV Typ
· Excellent AM Rejection 68dB Typ at 10mV
· Audio Output Voltage: 1V Typ
· Wide Supply Voltage Range: VCC = 6V to 18V
· Internal Zener Diode Regulator
· Very Low External Component Requirement
· Simple Detector Alignment: One Coil


Pinout

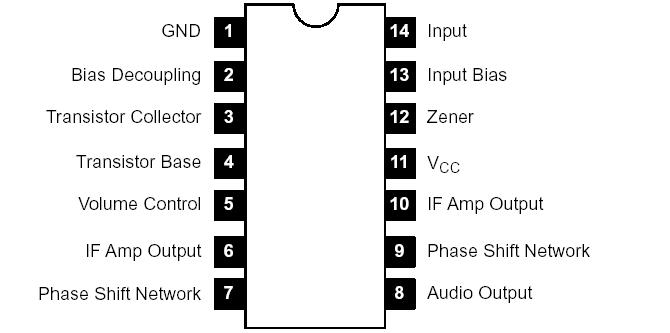

Connection Diagram


Specifications

Supply Voltage, V11  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
Volume Control Voltage, V5  . . . . . . . . . . . . . . . . . . . . . . . . . . . .4V
Zener Current, I12  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Transistor Collector Current, I3  . . . . . . . . . . . . . .. . . . . . . . . .5mA
Transistor Base Current, I4  . . . . . . . . . . .  . . . . . . . . . . . . . . .2mA
Bias Resistance (Max), R1314  . . . . . . . . . . . . . . . . . . . . . . . .1kΩ
Operating Temperature Range, Topr  . . . .  . . . . .15° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . . .65° to +150°C


Description

The NTE1292 is a monolithic integrated circuit in a 14Lead DIP type package specifically designed for audio detection in TV and FM radio receivers. It incorporates an 8stage limiting IF amplifier and balanced detector plus a DC operated volume control.

Pin3 and Pin4 are connected to the collector and base of a transistor which may be used as an AF preamplifier or as a switch.

At Pin12 a zenerdiode of NTE1292 is accessible which can be used to stabilize the supply voltage of this integrated circuit or the voltage of other circuit elements in the set.
