NTE1290

Features: ` Complete 1Chip AM Tuner` Good HighInput Characteristics Provided with Automatic Dynamic Range Mag. Control at RF State (THD = 1% Typ. at 130dBµ)` High AGC FOM (63dB Typ)` Good Usable Sensitivity (23dBµ Typ.)` Low Distortion (0.4% Typ. at 74dBµ)` Good Beat Characterist...

product image

NTE1290 Picture
See larger image
SeekIC No. : 004435965 Detail

NTE1290: Features: ` Complete 1Chip AM Tuner` Good HighInput Characteristics Provided with Automatic Dynamic Range Mag. Control at RF State (THD = 1% Typ. at 130dBµ)` High AGC FOM (63dB Typ)` Good Usab...

NTE1290 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1290
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Complete 1Chip AM Tuner
` Good HighInput Characteristics Provided with Automatic Dynamic Range Mag. Control at RF State (THD = 1% Typ. at 130dBµ)
` High AGC FOM (63dB Typ)
` Good Usable Sensitivity (23dBµ Typ.)
` Low Distortion (0.4% Typ. at 74dBµ)
` Good Beat Characteristics (3fi beat = 40dB at 108dBµ Input, at fi = 262.5kHz)
` Large TwoSignal Selectivity (55dB Typ. at Desired 54dBµ)
` CutOff Pop Noise at Detuning
` Standard Power Supply Voltage Area is 10.8V through 15.6V (13.2V typ) and Local Oscillation Stopping Voltage is Less Than 6V.

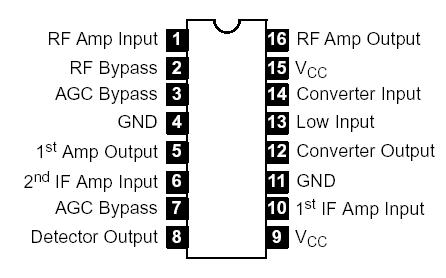

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . 16V
Power Dissipation (TA = +60°C), PT  . . . . . . . . . . . . . . .550mW
Operating Temperature Range, Topr  . . . . . . . .30° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . .55° to +125°C
