Product Details

Description



Features:

· Synchronization Circuit
· Oscillator and Ramp Generator
· High Power Gain Amplifier
· Flyback Generator
· Voltage Regulator


Pinout

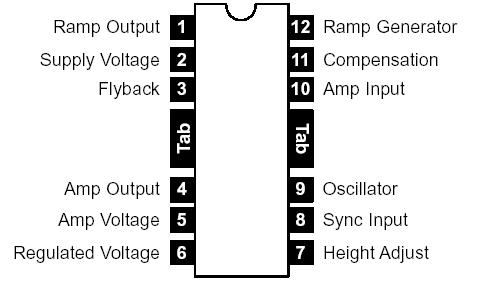

Connection Diagram


Specifications

Supply Voltage (Pin2), VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35V
Flyback Peak Voltage, V4, V5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60V
Power Amplifier Input Voltage, V10 . . . . . . . . . . . . . . . . . . . . . . . . .+10, 0.5V
Output Peak Current (NonRepetitive, t = 2msec), IO . . . . . . . . . . . . . . . . .2A
Output Peak Current, IO
(f = 50Hz, t 10µs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .2.5A
(f = 50Hz, t > 10µs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5A
Pin3 DC Current (V4 < V2), I3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  100mA
Pin3 PeaktoPeak Flyback Current (f = 50Hz, tfly 1.5msec), I3 . . . . . . .1.8A
Pin8 Current, I8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .±20mA
Power Dissipation, Ptot
   TA = +80°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .1W
   Ttab = +90°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .5W
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . .40° to +150°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . .40° to +150°C
Thermal Resistance, JunctiontoTab, RthJTAB . . . . . . . . . . . . . . . . . .. .12°C/W
Thermal Resistance, JunctiontoAmbient (Note 1), RthJA . . . . . . . . . . . .70°C/W
Note 1. Obtained with tabs soldered to printed circuit with minimized copper area.


Description

The NTE1289 is a monolithic integrated circuit in a 12Lead quad inline package designed for use in black and white and color TV receivers.
