NTE1254

Features: ` Programmable Divider Divided by 3 to 255` 10Bit Divider` Phase Detector` Reference Oscillation Circuit` OnChip Filter Amplifier` Code Converter` Only two or three crystals required for CB radio AM frequency selection` Unlocked signals are detected at instant stop IS terminal` Two ty...

product image

NTE1254 Picture
See larger image
SeekIC No. : 004435953 Detail

NTE1254: Features: ` Programmable Divider Divided by 3 to 255` 10Bit Divider` Phase Detector` Reference Oscillation Circuit` OnChip Filter Amplifier` Code Converter` Only two or three crystals required for ...

NTE1254 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1254
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Programmable Divider Divided by 3 to 255
` 10Bit Divider
` Phase Detector
` Reference Oscillation Circuit
` OnChip Filter Amplifier
` Code Converter
` Only two or three crystals required for CB radio AM frequency selection
` Unlocked signals are detected at instant stop "IS" terminal
` Two type program mode can be selected to change input mode level
  M: Low level . Binary code input enables, divided by 3 to 255
  M: High level . BCD code enables that the data at P1 to P6 port is offset 90 by code converter
` Internal active filter amplifier has a long holding time due to very high input impedance characteristics
  of the CMOSthis is to obtain very good spurious response.
` Output signal of the "I" can be used to stop the spurious radiation when the channel selector
  makes misprogramming such as rotary switch's lose contact.
` High speed and low power consumption due to CMOS
` Single power supply and fully TTL compatible: VDD = 5 ± 0.5 Volts
` Operating Temperature: TA = 30° to 65°C
` Pull down resistors installed in program and mode switch inputs


Pinout

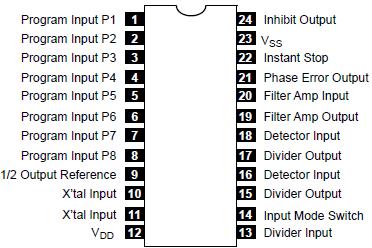

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +6.0V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 to +6.0V
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +125°C
