Product Details

Description



Features:

·Low Operating Voltage
·High Carrier Suppression

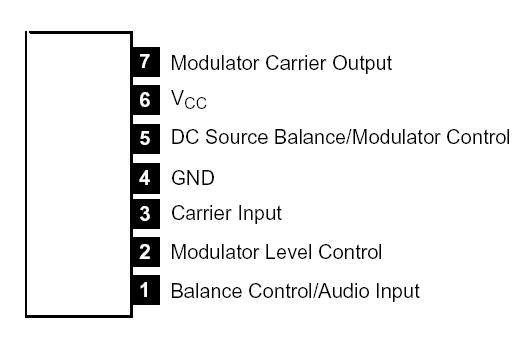

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .14.4V
Supply Current, ICC  . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .15mA
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22mW
Operating Ambient Temperature Range, Topr  . . . . . . . . . .20° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . 55° to +125°C


Description

The NTE1249 is a balancd modulator circuit in a 7Lead SIP type package designed for use in SSB CB equipment.
