NTE1248

Features: ` A PLL for High MultiplexEfficiency Operation.` Stable Operation at Low Voltages (VCC = 5.4V Min)` Low Lamp Lighting Level (6.5mV typ)` Separation Control Pin (Pin8)` Ability to Stop the VCO for Monaural Muting (Pin9)` Output Voltage Available with Low Loss (GV = 1dB typically)` Typical...

product image

NTE1248 Picture
See larger image
SeekIC No. : 004435950 Detail

NTE1248: Features: ` A PLL for High MultiplexEfficiency Operation.` Stable Operation at Low Voltages (VCC = 5.4V Min)` Low Lamp Lighting Level (6.5mV typ)` Separation Control Pin (Pin8)` Ability to Stop the ...

NTE1248 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1248
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` A PLL for High MultiplexEfficiency Operation.
` Stable Operation at Low Voltages (VCC = 5.4V Min)
` Low Lamp Lighting Level (6.5mV typ)
` Separation Control Pin (Pin8)
` Ability to Stop the VCO for Monaural Muting (Pin9)
` Output Voltage Available with Low Loss (GV = 1dB typically)
` Typically 0.3% Distortion
` SCA Rejection Ratio (80dB)


Application

· Stereo Radio Cassette Tape Recorders
· Car Stereos
· Home Stereos


Pinout

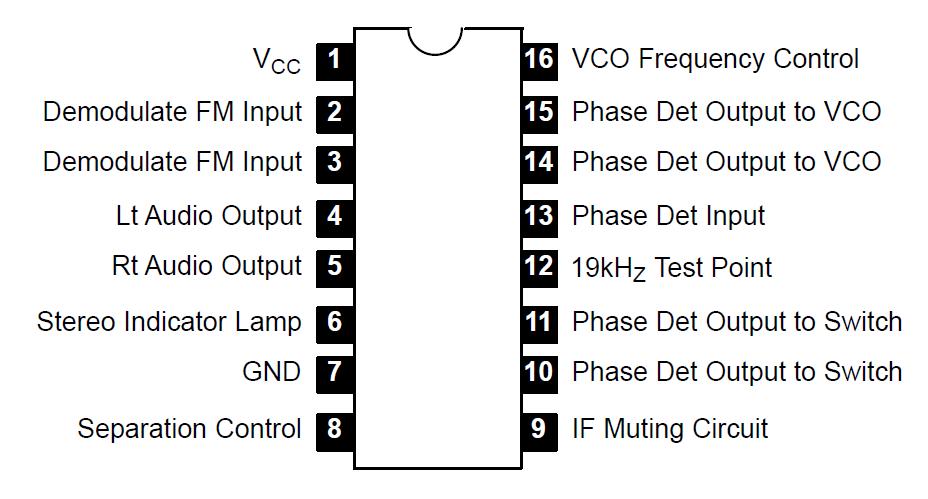

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14V
Lamp Indicator Current, ILAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75mA
Power Dissipation, Pd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . 550mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +125°C


Description

The NTE1248 is a phase lock loop (PLL) system monolithic integrated circuit in a 16Lead DIP type package designed as an FM multiplex stereo demodulator
