Product Details

Description



Features:

· Separate AM and FM Circuitry
· Ceramic Filters Can be Used.
· Same AM and FM Detection Output Level

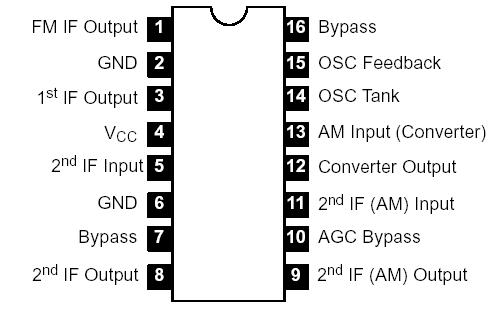

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .9.6V
Circuit Voltages, V87, V156  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .14.4V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Power Dissipation (TA = +75°C), PD  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .400mW
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . .20° to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . .55° to +150°C
