Product Details

Description



Pinout

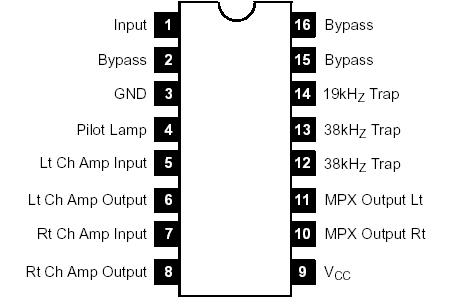

Connection Diagram


Specifications

Maximum Supply Voltage, VCCmax  . . . . . . . . . . . . . . . . . . . . . . . . . . . .20V
Lamp Driver Current, IL  . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . .40mA
Preamp Output Stage Current, I6, I8  . . . . . . . . . .. . . . . . . . . . . . . .1.5mA
Operating Temperature Range, Topr  . . . . . . . . . . . .. . . .20° to +80°C
Storage Temperature Range, Tstg. . . . . . . . . . . . . . . . . 40° to +125°C


Description

The NTE1230 is a monolithic integrated circuit in a 16Lead DIP type package designed for use as an FM stereo multiplex demodulator. This device includes 2 channel amplifiers that can make the 0dB line output.
