Product Details

Description



Features:

·AF Output Power
·Sufficient Regulation Under Dry Battery Operation

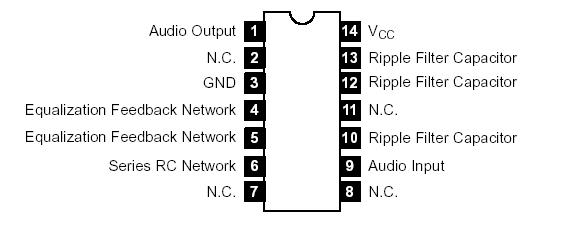

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage, VCCmax  . . . . . . . . . . . . . . . . .    . . . . . . . .13V
Allowable Power Dissipation, Pdmax . . . . . . . . . . . . . . . . . . . . . . . . .1.2W
Allowable Power Dissipation (Note 1), Pdmax . . . . . . . . . . . . . . . . 2.25W
Operating Temperature Range, Topr  . . . . . . . . . . . . . . .20° to +70°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . .40° to +150°C
Note 1. With 50 x 50mm2 printed board for radiator.
