Product Details

Description



Features:

` Low Level of Pilot Signal Sensitivity: 7mV
` Gain: 0dB (RL = 3.3k)
` Separation Adjustable
` Low Level of Pop Noise
` Excellent SCA Rejection Ratio

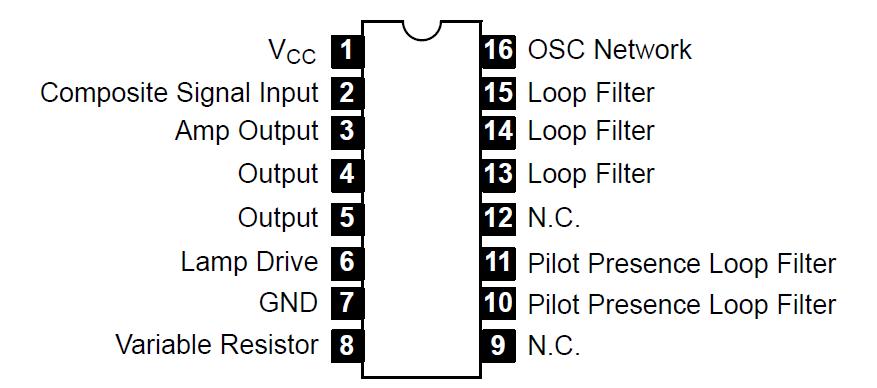

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC
V67 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
V17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16V
Lamp Current, IL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
Power Dissipation, Pd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . . . . . 400mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . 20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . 40° to +125°C
