NTE1214

Features: ` RF Amplifier Stage: Good quieting sensitivity by means of low noise transistors and cascade connecting.` Frequency Converter Stage: Splendid spurious characteristics by means of reduction of high frequency distortion in local oscillation and differential mixer.` IF Amplifier Stage: Rea...

product image

NTE1214 Picture
See larger image
SeekIC No. : 004435934 Detail

NTE1214: Features: ` RF Amplifier Stage: Good quieting sensitivity by means of low noise transistors and cascade connecting.` Frequency Converter Stage: Splendid spurious characteristics by means of reductio...

NTE1214 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1214
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` RF Amplifier Stage: Good quieting sensitivity by means of low noise transistors and cascade connecting.
` Frequency Converter Stage: Splendid spurious characteristics by means of reduction of high frequency distortion in local oscillation and differential mixer.
` IF Amplifier Stage: Reasonable distortion by wide output dynamic range.
` Detector Stage: Low distortion even at deep modulation considering diagonal clip or negative clip.
` AGC Stage: Wide AGC range and good large input signal characteristics by AGC'd IF and RF amplifier stage.
` Signal Meter Driving Stage: Excellent linearity to input signal.
` Others: Stabilized biasing against supply voltage drifting over all stages. Particularly superior compensation circuit in IF amplifier. Less deterioration of gain, detector output, and distortion in low supply voltage range in order to get wide supply voltage range (7V* to 16V).
* Needs to vary peripheral parts and its value of RF and local oscillator stage for the purpose of supply voltage operation.

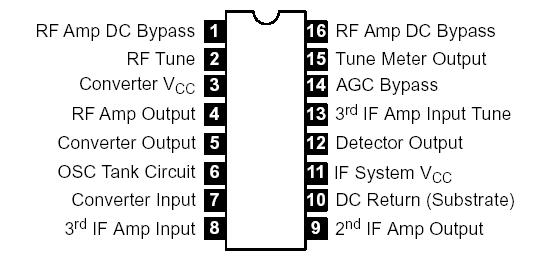

Pinout

Connection Diagram


Specifications

Maximum Supply Voltage (Pin3, Pin11), VCCmax . . . . . . . . . . . . . . . . . . .   . . . . . .16V
Output Voltage (Pin4, Pin5), vo  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Input Voltage (Pin2), vi  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 to 4V
Supply Current (Pin3, Pin4, Pin5, Pin11), ICC . . . . . . . . . . . . . . . . . . . . . . . .  . . .30mA
FlowOut Current (Pin15), I15  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2mA
Allowable Power Dissipation (TA +70°C), PDmax . . . . . . . . . . . . . . . . . . . . .450mW
Operating Temperature Range, Topr  . . . . . . . . . . . . . . . . . . . . . . . .  20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . 40° to +125°C


Description

The NTE1214 is a high integrated circuit in a 16Lead DIP type package designed for use in the AM system of high grade receivers. This device contains most of the functions needed for AM receiving.
