NTE1206

Features: · Requires No Inductors· Low External Part Count· Only Oscillator Frequency Adjustment Necessary· Integral Stereo/Monaural Switch 75mA Lamp Driving Capability· Wide Dynamic Range: Typically up to 1.3V(RMS) Composite Input Signal· Wide Supply Voltage: 8V to 16V· Excellent Channel Separati...

product image

NTE1206 Picture
See larger image
SeekIC No. : 004435929 Detail

NTE1206: Features: · Requires No Inductors· Low External Part Count· Only Oscillator Frequency Adjustment Necessary· Integral Stereo/Monaural Switch 75mA Lamp Driving Capability· Wide Dynamic Range: Typicall...

NTE1206 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1206
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires No Inductors
· Low External Part Count
· Only Oscillator Frequency Adjustment Necessary
· Integral Stereo/Monaural Switch 75mA Lamp Driving Capability
· Wide Dynamic Range: Typically up to 1.3V(RMS) Composite Input Signal
· Wide Supply Voltage: 8V to 16V
· Excellent Channel Separation Maintained Over Entire Audio Frequency Range
· Low Distortion: Typically 0.15% THD at 560mV(RMS) Composite Input Signal
· Excellent SCA Rejection


Pinout

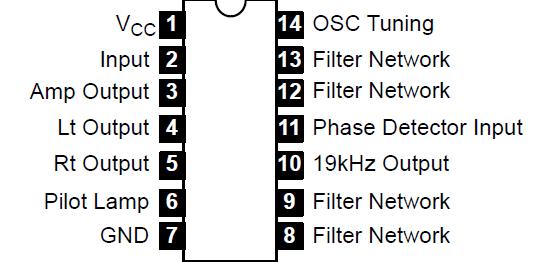

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16V
Lamp Voltage, VLAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . 30V
Lamp Current, (Note 1), ILAMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75mA
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . 625mW
Derated Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . . 5mW/°C
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +150°C
Note 1. Not exceed indicator lamp current 60mA when used at VCC = 14V to 16V.
