Product Details

Description



Features:

· AFPC & ACC detector employs sample and Hold techniques
· Low output impedance
· Only the initial crystal filter tuning is required ....... no killer and ACC adjustment at anytime
· Few external components required
· Compensation for temperature and Supply Variations
· Compatible with NTE1130


Application

· Subcarrier OSC
· Chroma Amplifier
· DC Chroma Gain Control
· Overload Detector
· ACC & Killer

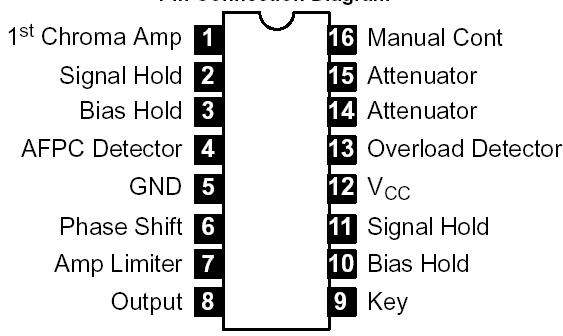

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . .  13.2V
Chroma Input Voltage, ec  . . . . . . . . . . . . . . . .. 4Vpp
Pulse Input Voltage, ep . . . . . . . . . . . . . . . . . . .4Vpeak
Minimum Load Resistor, RL  . . . . . . . . . . . . . . . . .3.3kΩ
Power Dissipation, PD . . . . . . . . . . . . . . . . .  . .920mW
