Product Details

Description



Pinout

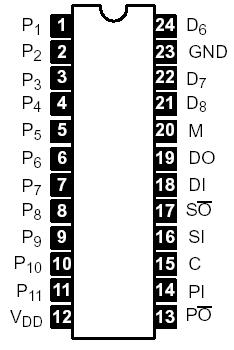

Connection Diagram


Specifications

Supply Voltage, VDD . . . . . . . . . . . . . . . . . . . . .  . . . . .0.3 to +6.0V
Input Voltage, VI . . . . . . . . . . . . . . . . . . . . . .  . . . . . .0.3 to +6.0V
Output Voltage, VO . . . . . . . . . . . . . . . . . . . .. . . . . . .0.3 to +6.0V
Output Current, IO
Pins 17, 21, 22, 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±5mA
Pins 13, 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±10mA
Operating Temperature Range, Topr . . . . . . . . . . .30° to +60°C
Storage Temperature Range, Tstg . . . . . . .. . . . .55° to +125°C


Description

The NTE1199 is an LSI CMOS circuit in a 24Lead DIP type package designed for use in frequency divider applications in CB transceivers. This device contains a prescaler, divider, and binary input programmable circuitry.
