Product Details

Description



Pinout

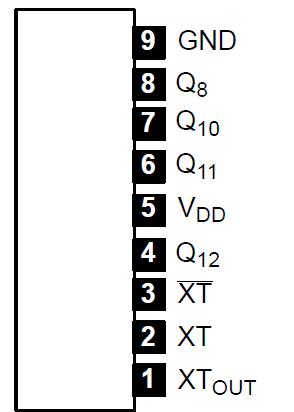

Connection Diagram


Specifications

Supply Voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 0.3 to VDD + 0.3V
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +125°C


Description

The NTE1197 is an integrated circuit in a 9Lead SIP type package consisting of a 12 stage frequency divider and an amplifier for use in crystal oscillator applications. This device is designed to operate with an input frequency of 10.24MHz. Available reference dividing ratios are 28, 210, 211 and 212.
