Product Details

Description



Features:

` BlackLevel Clamping
` Linear DC Controls for Brightness, Contrast, and Peaking
` Horizontal and Vertical Blanking
` Operates with Standard or Tapped Delay Line

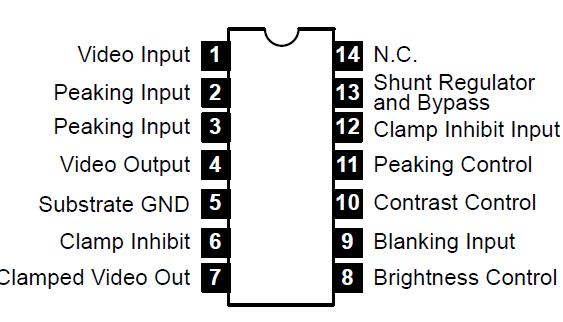

Pinout

Connection Diagram


Specifications

DC Supply Current (Into Pin13, Note 1), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59.5mA
Device Dissipation (Up to TA = +55°C, Note 1), PD . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . 750mW
Derate Above 55°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.9mW/°C
Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 40° to +85°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65° to +150°C
Lead Temperature (During Soldering, 1/16" from case, 10sec max), TL . . . . . . . . . . . . . .. +265°C
Note 1. Although the NTE1177 is rated for maximum dissipation of 750mW, it is recommended that
the current into Pin13 be limited by external circuit resistance to 39mA for a typical voltage
at Pin13 of 11.8V.


Description

The NTE1177 is a monolithic silicon integrated circuit in a 14Lead DIP type package that performs the luminance processing functions of amplification; contrast, brightness and peaking control; blanking; and blacklevel clamping.
