Product Details

Description



Pinout

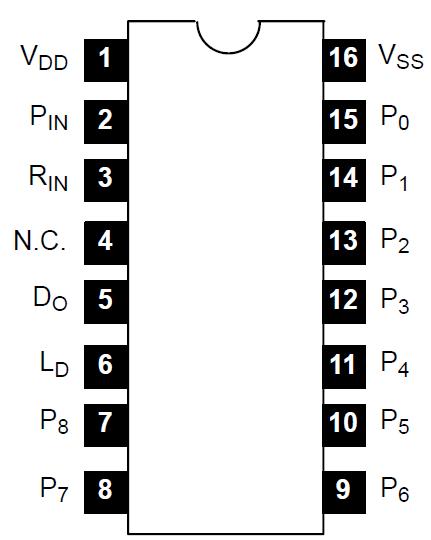

  Connection Diagram


Specifications

Supply Voltage, VDD VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3V to +7V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . VSS VIN VDD
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mW
Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55° to +125°C
Lead Temperature (During Soldering, 5sec Max), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260°C



Description

The NTE1167 consists of a crystal oscillator, 10 bit divider, phase comparator, and a programmable dividebyN 9bit counter in a single CMOS 16Lead DIP type integrated circuit.

This NTE1167 is designed for use in frequency synthesizers and phase locked loop applications for CB transceivers since it includes a reference frequency selector pin.
