Product Details

Description



Features:

· Video IF Amplifier, Synchronous Detector
· Video Differential Amplifier
· AFT Carrier Amplifier
· Sound IF Amplifier
· FM Differenial Peak Detector
· DC Sound Volume Control Circuit
· Sound Preamplifier Circuit

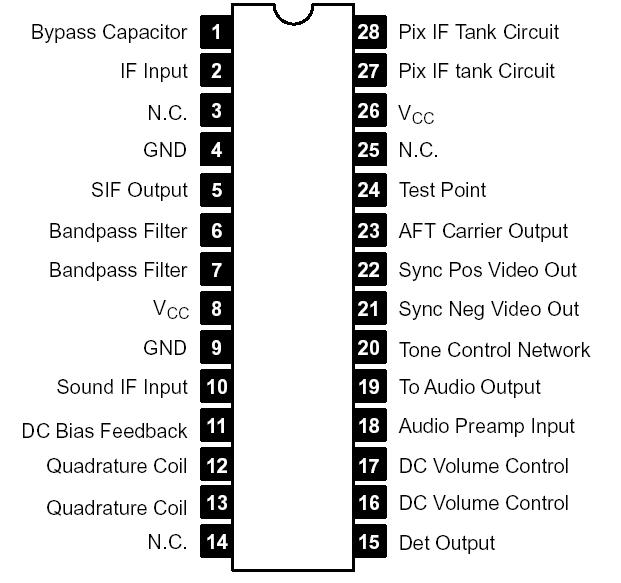

Pinout

Connection Diagram


Specifications

Supply Voltage (Note 1), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.4V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77mA
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.11W
Operating Ambient Temperature Range, Topr . . . . . . . .20° to +70°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . 40° to +150°C
Note 1. A continuous operation voltage must be set within a proper range so that the dissipation does not exceed 1.11W.
