NTE1130

Features: ` Color TV Demodulator (Function)` Color Difference Signal Amplifier` Chroma Demodulator` Color Matrix Circuit` DC Hue Control` High Sensitivity: Output VB Y = 2.5Vpp Input 0.2Vpp` Including MOS Capacitance for Filter` Hue is controlled by DC VoltagePinoutSpecificationsSupply Voltage (V1...

product image

NTE1130 Picture
See larger image
SeekIC No. : 004435906 Detail

NTE1130: Features: ` Color TV Demodulator (Function)` Color Difference Signal Amplifier` Chroma Demodulator` Color Matrix Circuit` DC Hue Control` High Sensitivity: Output VB Y = 2.5Vpp Input 0.2Vpp` Includi...

NTE1130 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1130
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Color TV Demodulator (Function)
` Color Difference Signal Amplifier
` Chroma Demodulator
` Color Matrix Circuit
` DC Hue Control
` High Sensitivity: Output VB Y = 2.5Vpp Input 0.2Vpp
` Including MOS Capacitance for Filter
` Hue is controlled by DC Voltage


Pinout

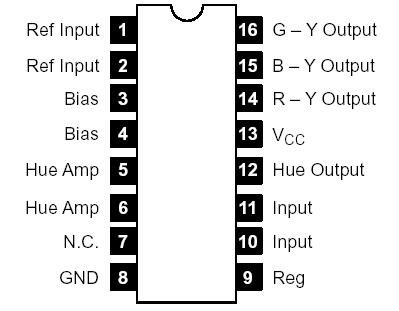

Connection Diagram


Specifications

Supply Voltage (V13), VCC  . . . . . . . . . . . . . . . . . . .  . . . . . . . . . .18V
Hue Output terminal Voltage, V12  . . . . . . . . . . . . . . . . . . . . . .  18V
Hue Control Terminal Voltage, V9  . . . . . . . . . . . . . . . . . . . .0 to VCC
Chroma Signal Input, eC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .4VPP
Reference Signal Input Voltage, eR  . . . . . . . . . . . . . . . . . . . .4VPP
SubCarrier Input Voltage, V10, V11 . . . . . . . . . . . . . . . . . . .4VPP
Minimum Load Resistance, RL . . . . . . . . . . . . . . . .. . . . . . . . . . . 3kΩ
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .750mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . .  . . . . . . .6.0mW/°C
Operating Temprature Range, Topr . . . . . . . . . . . ..20° to +65°C
Storage Temperature Range, Tstg . . . . . . . . . . .  55° to +150°C
