Product Details

Description



Features:

· High Power Gain: 48dB Typ @ f = 58MHz
· AGC Operating by External DC Control Voltage
· High Gain Reduction: 60dB Min @ f = 58MHz
· Low Reverse Transfer Admittance: 1.0µmho Typ @ f = 58MHz
· Nearly Constant Input and Output Admittance Over Entire AGC Range

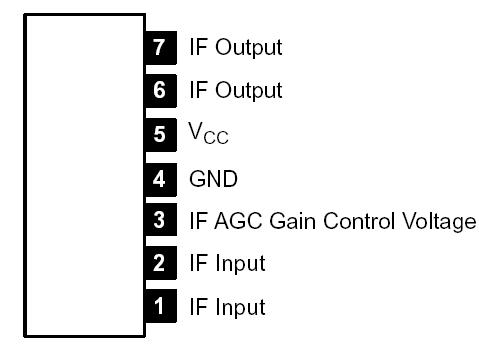

Pinout

Connection Diagram


Specifications

Supply Voltage (V5), VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .15V
Output Terminal Voltage, V6, V7 . . . . . . . . . . . . . . . . . . . . . . . . .18V
Gain Control Voltage, V3 . . . . . . . . . . . . . . . . . . . . . . . . . .0V to VCC
Input Terminal Voltage, V1, V2 . . . . . . . . . . . . . . . . . . . . .  . 10VPP
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..400mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .4mW/°C
Operating Temperature Range, Topr . . . . . . . . . . .20° to +65°C
Storage Temperature Range, Tstg . . . . . . . . . . . 55° to +125°C
