NTE1117

Features: ` Minimum Working Voltage of 3V` Low Quiescent Current` Low Number of External Components` Good Ripple Rejection` No CrossOver Distortion` Output Power: PO = 2W at 12V 8Ω PO = 1.6W at 9V 4Ω PO = 1.2W at 9V 8ΩPinoutSpecificationsSupply Votlage, VS. . . . . . . . . . ....

product image

NTE1117 Picture
See larger image
SeekIC No. : 004435903 Detail

NTE1117: Features: ` Minimum Working Voltage of 3V` Low Quiescent Current` Low Number of External Components` Good Ripple Rejection` No CrossOver Distortion` Output Power: PO = 2W at 12V 8Ω PO = 1.6W ...

NTE1117 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1117
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Minimum Working Voltage of 3V
` Low Quiescent Current
` Low Number of External Components
` Good Ripple Rejection
` No CrossOver Distortion
` Output Power:
   PO = 2W at 12V 8Ω
   PO = 1.6W at 9V 4Ω
   PO = 1.2W at 9V 8Ω


Pinout

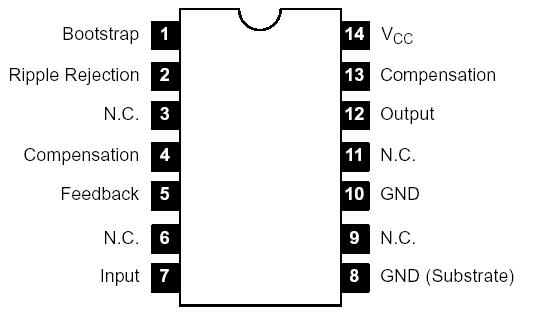

Connection Diagram


Specifications

Supply Votlage, VS. . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . 16V
Output Peak Current, IO  . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . 1.5A
Power Dissipation (TA = +50°C), Ptot . . . . . . . . . . . . . . . . . . . .  1.25W
Operating Junction Temperature Range, TJ . . . .  . . . .40° to 150°C
Storage Temperature Range, Tstg . . . . . . . . . . . . .. . .40° to 150°C
Thermal Resistance, JunctiontoAmbient, RthJA . . . . . . . . . .80°C/W


Description

The NTE1117 is a monolithic integrated audio amplifier in a 14Lead DIP type plastic package designed for use as a low frequency class B amplifier with a wide range of supply voltage of 3V to 16V.
