NTE1116

PinoutSpecificationsSupply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30VOutput Peak Current (NonRepetitive), IO . . . . . . . . . . . . . . . . . . . . . . . . . . . .2AOutput Current (Repetitive), IO . . . . . . . . . . . . . . . . . . ...

product image

NTE1116 Picture
See larger image
SeekIC No. : 004435902 Detail

NTE1116: PinoutSpecificationsSupply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30VOutput Peak Current (NonRepetitive), IO . . . . . . . . . . . . ....

NTE1116 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1116
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

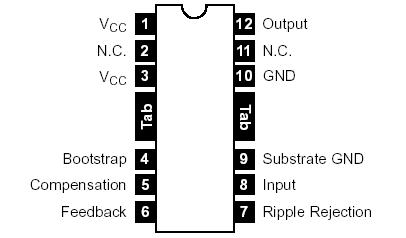

Connection Diagram


Specifications

Supply Voltage, VS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30V
Output Peak Current (NonRepetitive), IO  . . . . . . . . . . . . . . . . . . . . . . .  . . . . .2A
Output Current (Repetitive), IO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .1.5A
Power Dissipation, Ptot
TA = +70°C  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1W
Ttab = +100°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  5W
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . .40° to +150°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . . . . . . . . . .  .40° to +150°C
Thermal Resistance, JunctiontoTab, RthJTAB  . . . . . . . . . . . . .. . . . . .12°C/W
Thermal Resistance, JunctiontoAmbient (Note 1), RthJA  . . . . . . . .  . . .70°C/W
Note 1. Obtained with tabs soldered to printed circuit with minimized copper area.


Description

The NTE1116 is a monolithic integrated circuit designed for use as a low frequency class B amplifier. The external cooling tabs enable 2.5 watts of output power to be achieved without the use of an external heat sink and 5 watts of output power using a small area of the P.C. board copper as a heat sink.
