Product Details

Description



Pinout

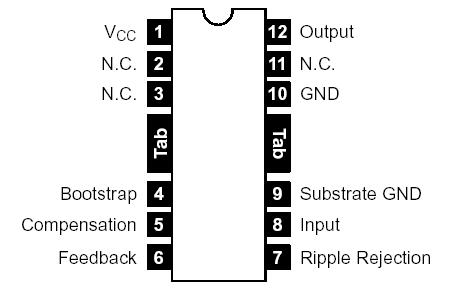

Connection Diagram


Specifications

Supply Voltage, VS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .20V
Output Peak Current (NonRepetitive), IO  . . . . . . . . . . . . . . . . . . .  . . . .3.5A
Output Current (Repetitive), IO  . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .2.5A
Power Dissipation, Ptot
TA = +70°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   1W
Ttab = +100°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . .5W
Operating Junction Temperature Range, TJ  . . . . . . . . . .. . .40° to +150°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . .  . . . . .40° to +150°C
Thermal Resistance, JunctiontoTab, RthJTAB
NTE1115  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .10°C/W
NTE1115A  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . .12°C/W
Thermal Resistance, JunctiontoAmbient, RthJA
NTE1115  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80°C/W
NTE1115A (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70°C/W
Note 1. Obtained with tabs soldered to printed circuit with minimized copper area.


Description

The NTE1115 and NTE1115A are monolithic integrated circuits designed for use as low frequency class B amplifiers. These devices provide 7W power output at 16V/4Ω, 6W at 14.4V/4Ω, 2.5W at 9V/Ω, 1W at 6V/4Ω and works with a wide range of supply voltages (4V to 20V); and gives high output current (up to 2.5A), high efficiency (75% at 6W output), very low harmonic and crossover distortion. In addition, thermal protection is provided.
