Product Details

Description



Application

· For FM IF Amplifier
· For TV SIF Amplifier

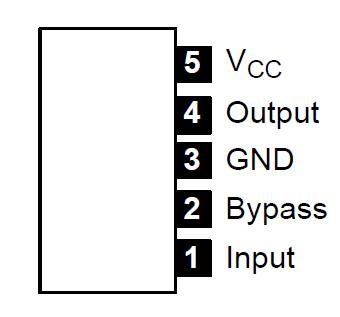

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15V
Output Voltage, VOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V
Input Voltage (Between Pin1 and Pin2), VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . ±15V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3mW/°C
Operating Temperature Range (VCC = 12V), Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +125°C
