Product Details

Description



Features:

`Recommended for Driver of PushPull Output Stage
`Possible to Drive 4 Watt Output Stage
`Wide Range of Supply Voltage


Pinout

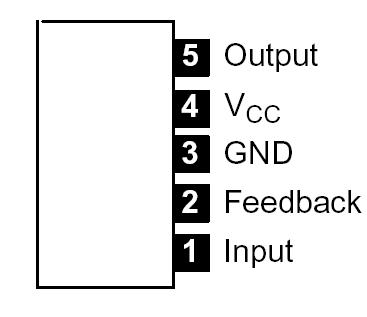

Connection Diagram


Specifications

Supply Voltage, VCC  . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . .20V
Source Current, ICC . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . .15mA
Internal Power Dissipation, PT  . . . . . . . . . . . . . . . . . . . . . . .300mW
Input Voltage, VIN. . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . . ±3V
Operating Temperature Range, Topr  . . . . . . . . . . .30° to +75°C
Storage Temperature Range, Tstg   . . . . . . . . . . .55° to +125°C
