NTE1101

Features: · General Amplifier Circuit· High Frequency Amplifier· Mixer, OSC and Modulator· Video Amplifier· Recommend RF and IF Amplifier (f = 0 to 100MHz)· AGC is possiblePinoutSpecificationsSupply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30VEmittertoBase ...

product image

NTE1101 Picture
See larger image
SeekIC No. : 004435894 Detail

NTE1101: Features: · General Amplifier Circuit· High Frequency Amplifier· Mixer, OSC and Modulator· Video Amplifier· Recommend RF and IF Amplifier (f = 0 to 100MHz)· AGC is possiblePinoutSpecificationsSupply...

NTE1101 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1101
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· General Amplifier Circuit
· High Frequency Amplifier
· Mixer, OSC and Modulator
· Video Amplifier
· Recommend RF and IF Amplifier (f = 0 to 100MHz)
· AGC is possible

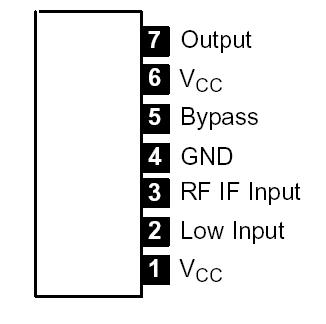

Pinout

Connection Diagram


Specifications

Supply Voltage, VCC  . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .30V
EmittertoBase Voltage, VEB  . . . . . . . . . . . . . . . . . . . .  . . . . . . .6V
Supply Current, ICC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA
Power Dissipation, PD  . . . . . . . . . . . . . . . . . .  . . . . . . . . . . .  300mW
Operating Temperature Range, Topr  . . . . . . . . . . . .20° to +75°C
Storage Temperature Range, Tstg  . . . . . . . . . . . . . .55 to +125°C
