NTE1100

Features: · High Power Gain: GP = 69dB (Typ)· Good Limiter Characteristic: VIN (lim) = 600µV (Typ)· High Output Voltage: VOM = 800V (Typ)· Wide Frequency Range: f = 1kHz to 20MHz· Operating Supply Voltage Range: VCC = 6V to 15VPinoutSpecificationsSupply Voltage, VCC . . . . . . . . . . . . ....

product image

NTE1100 Picture
See larger image
SeekIC No. : 004435893 Detail

NTE1100: Features: · High Power Gain: GP = 69dB (Typ)· Good Limiter Characteristic: VIN (lim) = 600µV (Typ)· High Output Voltage: VOM = 800V (Typ)· Wide Frequency Range: f = 1kHz to 20MHz· Operating Su...

NTE1100 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
NTE1100
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/8

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High Power Gain: GP = 69dB (Typ)
· Good Limiter Characteristic: VIN (lim) = 600µV (Typ)
· High Output Voltage: VOM = 800V (Typ)
· Wide Frequency Range: f = 1kHz to 20MHz
· Operating Supply Voltage Range: VCC = 6V to 15V


Pinout

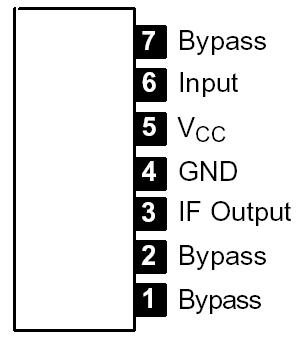

Connection Diagram


Specifications

Supply Voltage, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .15V
Input Voltage (Between Pin6 and Pin7), VIN . . . . . . . . . . . . . ±3V
Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . .400mW
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . .4mW/°C
Operating Temperature, Topr . . . . . . . . . . . . . . . 25°to +75°C
Storage Temperature, Tstg . . . . . . . . . . . . . . . . 55°to +125°C
