Product Details

Description



Features:

· For Reverse AGC
· Sufficient Gain and Quieting Sensitivity
· Stable Gain Over the Wide Band
· Small Wave Distortion with AGC

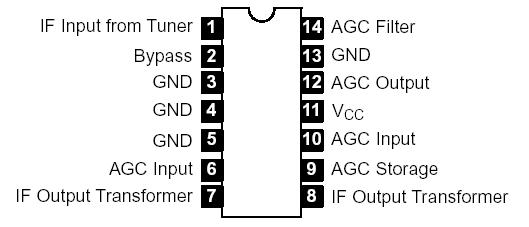

Pinout

Connection Diagram


Specifications

Maximum Voltage
V11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18V
V7, V8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  18V
V1, V2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10VPP
V6, V10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6V
V5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V to +10V
Allowable Power Dissipation (TA +65°C), PDmax . . . . . . 500mW
Operating Temperature Range, Topr . . . . . . . . . . .20° to +85°C
Storage Temperature Range, Tstg . . . . . . . . . . . ..-55° to +125°C
